Economical-type variable speed pump
Publishdate：2018-11-26 Views：6736

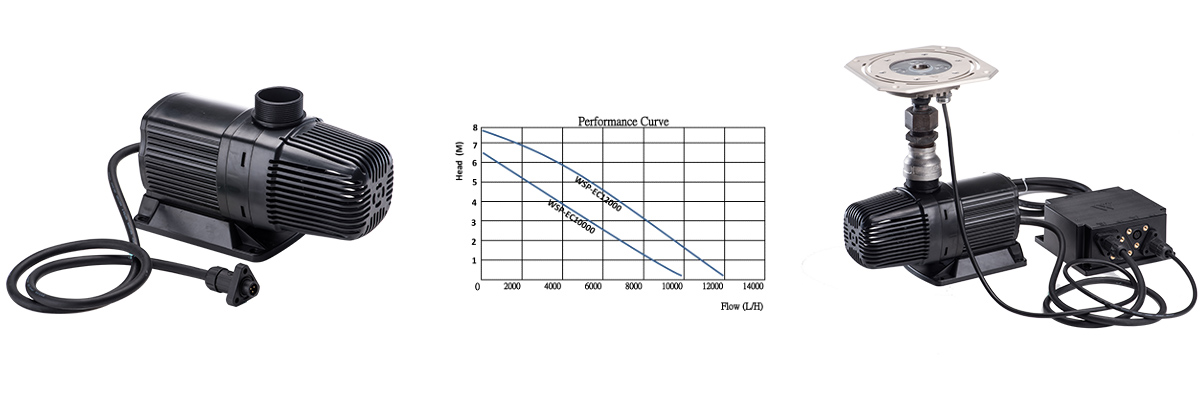

Economical-type variable speed pump/DMX/ DC24V

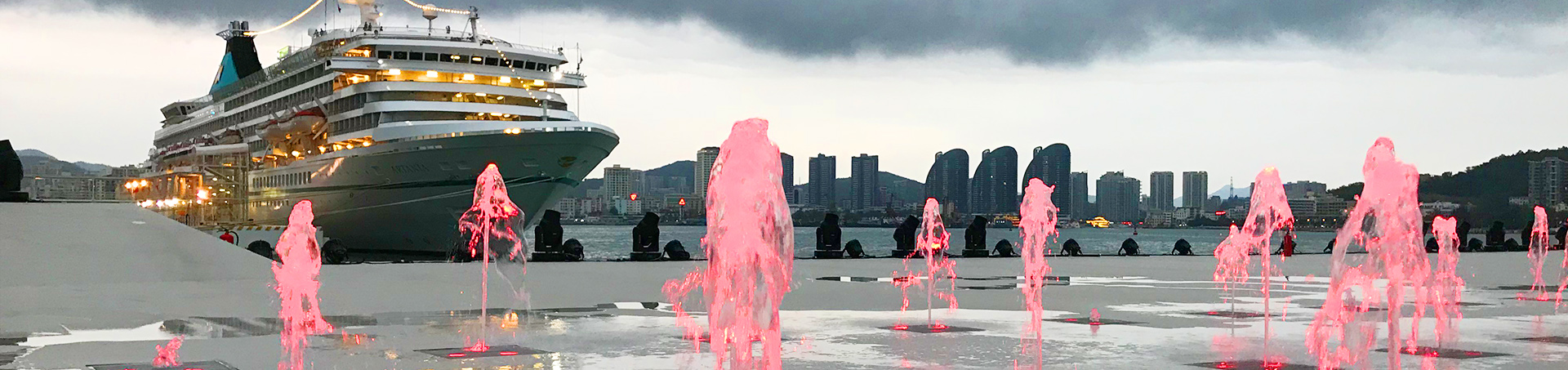

Economical-type variable speed pumps are divided into ECONOMIC-1 and ECONOMIC-2. The pumps are supplied with low voltage 24V DC power and conform to international safety standards, which roots out potential safety hazards such as electric leakage and electric shock.Standard DMX communication allows precise regulation and control, and fast self-regulating response speed. The corresponding 12MM DC nozzles reach the spout height of 0-3.5m and 0-4.5m, with arbitrary regulation of the height and speed;The casings are made of UV-resistant engineering plastics, and they are insulated and resistant to the acid corrosion of disinfectant in water treatment.The pumps are featured with environmental protection and energy conservation, with the total powers at full load operation of 100W and 120W, respectively;The installation modes, submersible installation and pipeline dry installation, are available; their compact sizes make them suitable for dry fountains, amusing interaction and small waterscapes with small installation space.
|
Equipment name |
ECONOMIC-01 |
ECONOMIC-02 |
|
Technical Parameters/Model No. |
WSP-EC120 |
WSP-EC200 |
|
Article No. |
51003 |
51004 |
|
Drive Type |
41001/41003（第 页） |
41001/41003（第 页） |
|
Voltage (V) |
DC24 |
DC24 |
|
Power (W) |
120 |
200 |
|
Max. Lift (m) |
7.8 |
9.5 |
|
Max. Flow (l/h) |
12000 |
15000 |
|
Spout height (m) 12mm DC ejection nozzle |
3.0 |
5.0 |
|
Communication mode |
DMX512 |
|
|
Protection grade |
IP68 |
|
|
Max. revolving speed(r/min) |
4500 |
4500 |
|
Control channel |
2通道：开关通道、调速通道 |
|
|
Max. working temperature(℃) |
5-45 |
|
|
Standard wire length (m) |
1.2 |
|
|
Working depth (m) |
0.3-5 |
|
|
Weight(kg) |
2.5 |
2.7 |
|
Outlet diameter (inch) |
11/2 |
11/2 |
|
Inlet diameter (inch) |
1 | 1 |
|

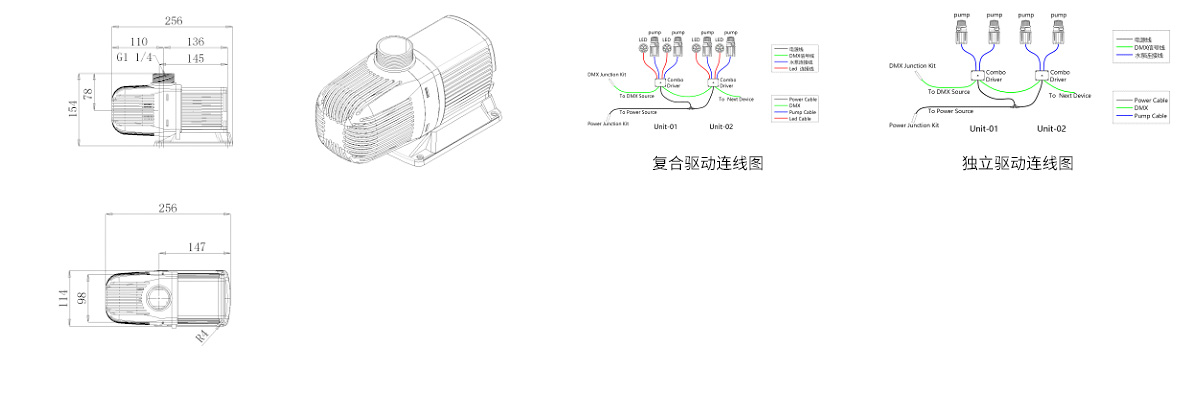

Overall dimensions(mm) |
256x114x154 |
256x114x154 |
