iSwivel Universal Swing Device
Publishdate：2018-11-26 Views：11429
iiSwivel Universal Swing Device
●Product Features
Operation range of X-axis is 270°; operation range of Y-axis is140°; operation speed is approx. 70°/sec.
Standard DMX512 signal control, controlled by two motors with eight channels, safe DC 24V motor.
Three LED lamps with adjustable lighting angles
External split-type LED transverse flowing actuator, with patented waterproofing connector
2" water inlet and outlet, and different types of nozzles can be used
Conforming to IP68 waterproofing code

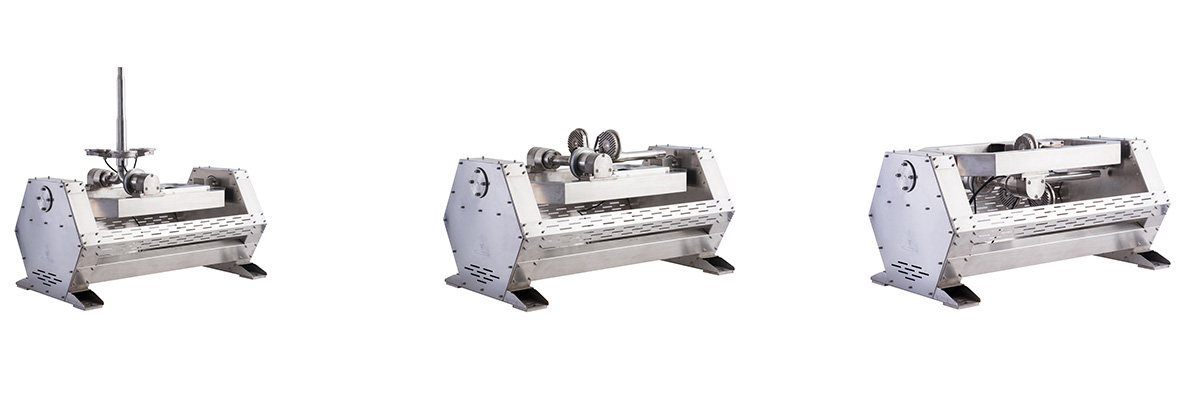

CWM series universal swing device has three rotating axes, X-axis, Y-axis and Z-axis. Through the simultaneous rotations of X-axis and Y-axis or combinations of independently rotating X-axis and Y-axis, ejection nozzles carry the spouts to swing freely within the space defined by the two axes; The Z-axis allows the nozzle to rotate 360° around the Z-axis, with rotating speed and direction adjustable freely (especially suitable for fan-shape pattern); the swinging and rotation of three axes are controlled by servo displacement technology freely at any direction.
The nozzle is featured with reasonable structure, perfect mechanical balance, high stability and replaceable and maintainable spare parts; and the stainless steel structure can be totally disassembled; The X-axis can rotate 270°, making it possible for the nozzle and mechanical base being submerged under the water surface when it is not working, so that the overall aesthetics of large-scale music fountain can be ensured.
|
Technical Parameters/Model No. |
CWM-01/X |
CWM-02/X/Y |
CWM-03/X/Y/Z |
|
Article No. |
92001 |
92002 |
92003 |
|
Drive Type |
Built-in equipment |
||
|
Voltage (V) |
AC80V | ||
|
Main drive motor power (W) |
80 |
160 |
240 |
|
Max. operation angle of X-axis (°) |
180 |
270 |
270 |
|
Max. operation angle of Y-axis (°) |
---- |
140 |
140 |
|
Max. operation angle of Z-axis (°) |
---- |
---- |
360 |
|
Communication mode |
DMX512 |
||
|
Protection grade |
IP68 |
||
|
Max. ejection height(m) |
Direct flow 20m |
Direct flow 30m |
Fan-shape 5m |
|
Control channel |
5 channels: 1-dimensional swing channel, LED channel
|
6 channels: 2-dimensional swing channel, LED channel |
channels: 3-dimensional swing channel, LED channel |
|
Max. working temperature(℃) |
5-37 |
||
|
Standard wire length (m) |
1.2 |
||
|
Min. working depth (m) |
0.6 |
||
|
Weight(kg) |
23 |
46 |
50 |
|
Nozzle caliber (inch) 11/2 |
11/2 |
||
|
Inlet caliber (inch) |
1 |
||
|
Overall dimensions(mm) |
375x280x380 |
1074x598x619 |
1074x598x619 |
